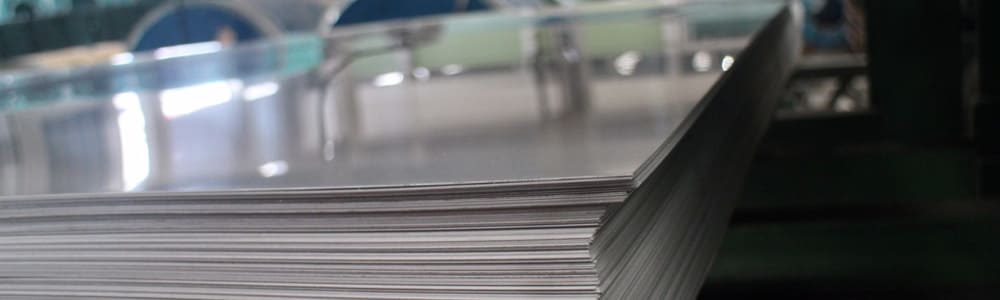

ISO Approved Manufacturer & Exporter of ASTM B168 Inconel 601 Sheets & Plates.

ISO Approved Manufacturer & Exporter of ASTM B168 Inconel 601 Sheets & Plates.

ASTM B168 Inconel 601 sheets, plates are one of the most demanding Inconel products that are used worldwide in many industries and applications. ASTM grade B168 cover all rolled sheets and plates that are made using chromium, nickel and iron alloys. These sheets are processed through the latest mill rolling machine where dimensions and thickness are measured. These sheets and plates are well tested accordingly so as to examine the dimensions, thickness, and length. Piyush Steel is the leading manufacturer of these sheets and plates. They are aimed to manufacture high quality of products that can easily fulfill the demands and requirement of industrial applications as a whole.

Features of ASTM B168 Inconel 601 sheets plates

  1. High tensile and yield strength
  2. Rockwell hardness
  3. Elongation
  4. Dimensional accuracy
  5. Weldability
  6. Excellent corrosion resistance
  7. Durability

All the above-mentioned features make Inconel sheets and plates, one of the most demanding products. On the other hand, for manufacturing these products various standard specifications are included like:

Specifications- ASTM A168/ ASTM SB168
Standard- ASTM, API, ASME
Specialize- perforated sheet, shim sheet
Size- 0.5mm to 200mm in width
Length- 2500mm to 12500mm
Thickness- 1000mm to 2500mm
Finish- hot rolled plate, cold rolled sheet and satin with plastic coat
All these standard specifications are added to the material for manufacturing high quality of sheets and plates. With it, there are several tests done so as to check the quality of these products. All these tests are done as per the industrial set up norms and under the supervision of experts. At last, these ASTM B168 Inconel 601 sheets, plates are packed and delivered worldwide.



Standard : ASTM / ASME SB 168, ASTM / ASME SB 424 , ASTM / ASME SB 443

Specifications :-

Standards Designation
ASTM B 168
ASME SB 168
Standards Inconel 601
UNS N06601
Werkstoff Nr. 2.4851



Dimensions

Chemical Composition

Inconel 601
Ni 58.0 – 63.0
Cr 21.0 – 25.0
Fe Balance
Al 1.0 – 1.7
C 0.10 max
Mn 1.0 max
S 0.015 max
Si 0.5 max
Cu 1.0 max



Mechanical & Physical Properties – Inconel 601

Density 8.1 g/cm3
Melting Point 1411 °C (2571 °F)
Tensile Strength Psi – 80,000 , MPa – 550
Yield Strength (0.2%Offset) Psi – 30,000 , MPa – 205
Elongation 30 %
