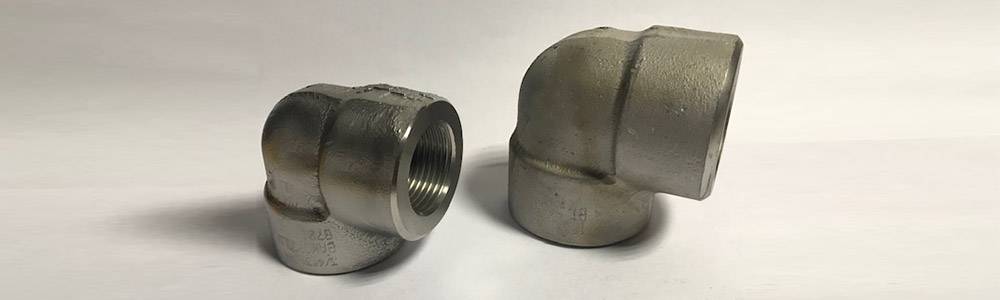

90° Elbow / ASME B16.11 Threaded 90° Elbow

Piyush Steel are Manufacturer, Exporter and Supplier of Threaded Fitting 90° Elbow. Piyush steel are largest pipe fitting manufacturer for all type of industries in India. The whole manufacturing process is subject to a 100% quality control. ASME B16.11/BS3799 Threaded Fittings 90° Elbow Available in different dimensions and specifications.



Dimension : ANSI B 16.11
Specification : ASTM A 182
Size : 1/4" to 4"
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Range : Union, Tee, Elbow, Socket, Nipple, Coupling, Plug, Bushing, Weldolet,   Threadolet, Sockolet.



Types:

Forged Cap, Forged Reducer, Forged Elbow, Forged Tee, Forged Insert , Forged Stub-Ends, Forged Return Bends, Forged Collar, Forged Cross.



Materials and Grade:

Stainless Steel Threaded Fitting 90° Elbow:

ASTM / ASME SA 403 GR WP "S" / "W" / " WX"

304, 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347H.

Duplex Steel Threaded Fitting 90° Elbow:

ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760

Carbon Steel Threaded Fitting 90° Elbow:

ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70

Alloy Steel Threaded Fitting 90° Elbow:

ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91

Nickel Alloy Threaded Fitting 90° Elbow:

ASTM / ASME SB 336,
Nickel Alloy 200 (UNS No. 2200), Nickel Alloy 201 (UNS No. 2201), Monel 400 (UNS No. 4400), Alloy 20 / 20 CB 3 (UNS No. 8020), Inconel 825 (UNS No. 8825), Inconel 600 (UNS No. 6600), Inconel 601 (UNS No. 6601), Inconel 625 (UNS No. 6625), Hastelloy C 276 / C22 / B2 (UNS No. 10276)

Copper Alloy Steel Threaded Fitting 90° Elbow:

ASTM / ASME SB 111 UNS NO.C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 , C 71500
ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)



Threaded Fittings 90° Elbow Dimensions:

Dimensions NPS 1/2 to 4 - Class 2000

NPS Min Length
of Thread
Outside Dia
of Band
Minimum
WT
Center to End
B J D G 90°
A
45°
C
1/2 10.9 13.6 33 3.18 28 22
3/4 12.7 13.9 38 3.18 33 25
1 14.7 17.3 46 3.68 38 28
1.1/4 17 18 56 3.89 44 33
1.1/2 17.8 18.4 62 4.01 51 35
2 19 19.2 75 4.27 60 43
2.1/2 23.6 28.9 92 5.61 76 52
3 25.9 30.5 109 5.99 86 64
4 27.7 33 146 6.55 106 79



Dimensions NPS 1/2 to 4 - Class 3000

NPS Min Length
of Thread
Outside Dia
of Band
Minimum
WT
Center to End
B J D G 90°
A
45°
C
1/2 10.9 13.6 38 4.09 33 25
3/4 12.7 13.9 46 4.32 38 28
1 14.7 17.3 56 4.98 44 33
1.1/4 17 18 62 5.28 51 35
1.1/2 17.8 18.4 75 5.56 60 43
2 19 19.2 84 7.14 64 44
2.1/2 23.6 28.9 102 7.65 83 52
3 25.9 30.5 121 8.84 95 64
4 27.7 33 152 11.18 114 79



Dimensions NPS 1/2 to 4 - Class 6000

NPS Min Length
of Thread
Outside Dia
of Band
Minimum
WT
Center to End
B J D G 90°
A
45°
C
1/2 10.9 13.6 46 8.15 38 28
3/4 12.7 13.9 56 8.53 44 33
1 14.7 17.3 62 9.93 51 35
1.1/4 17 18 75 10.59 60 43
1.1/2 17.8 18.4 84 11.07 64 44
2 19 19.2 102 12.09 83 52
2.1/2 23.6 28.9 121 15.29 95 64
3 25.9 30.5 146 16.64 106 79
4 27.7 33 152 18.67 114 79



General notes:

•   Dimensions are in millimeters unless otherwise indicated.

•   Dimension (B) is minimum length of perfect thread.

•   The length of useful thread (B) plus threads with fully formed roots and flat crests) shall not be less than J.
