Currently, the Piyush steel distributes an extensive range of Socket weld flanges SWRF flanges both nationally and internationally. We have acquired knowledge and experience in manufacturing and exporting from several years and focus on continuous improvement to offer the best product quality. The product is made using the latest tools and modern technology to mold in desired specification and standard. The specification like size, length, type, finish, and thickness can be adjusted on request.
Table Of Content

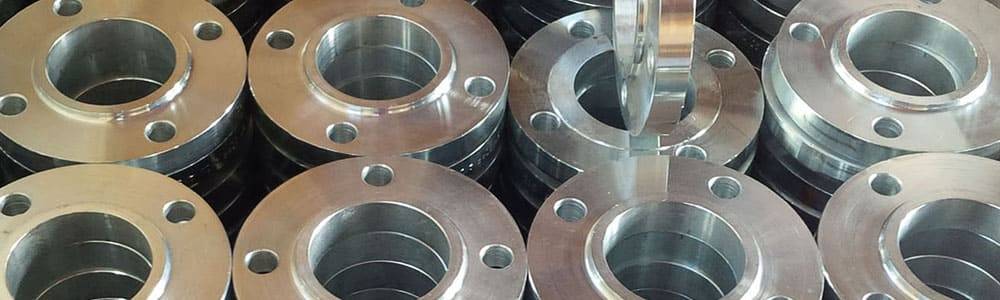

About Socket weld flanges SWRF flanges
The second most type of fitting used to join piping equipment is flanges. They can also be exercised in dismantling. It offers maintenance flexibility. Flanges connect equipment and valves. They are added in the mainline system during plant operation if maintained regularly.
They got connected to pipes using single fillet on the outer side. They are first inserted into the socket of the flange and lifted and welded at last. The gap is lifted for proper positioning after solidification of the weld. It is mainly exercised for high-pressure and small-size piping that don’t deliver corrosive fluids.
The joint is composed of 3 independent and separate components namely, the gaskets, the flanges, and then bolting. Special control in application and selection of elements is considered to attain desired joint type with acceptable leak tightness. However, it is recommended not to use in undergrounding piping system. Thus mostly used in fire and leak process plant. Plenty of flange types are in the market depending on the connection, facing type, pressure-temperature rating, and material type.
Common types are threaded flanges, socket weld flanges, slip-on flanges, and lap joint flanges. Out of all, the socket weld flanges SWRF flanges are mostly used.
Specification : ASTM A182 / B564 / A105 / A350 / A694 / B381.
Dimension Standard : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2" (15 NB) to 48" (1200NB)
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
DIN Flanges : DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673
JIS Flanges : JIS B2220 5K, JIS B2220 10K, JIS B2220 16K, JIS B2220 20K
BS Flanges : BS4504 PN 6, BS 4504 PN 10, BS4504 PN 16, BS4504 PN 25, BS4504 PN 40, BS 4504 PN 64, BS 4504 PN 100, BS 4504 PN 160, BS 4504 PN 250, BS 10, BS Table D, BS Table E, BS Table F, BS Table H.
Stainless Steel Socket Weld Flanges : 304, 304L, 304H, 310s, 316, 316L, 316H, 316Ti, 317/317L, 321/321H, 347/347H, 904L, 446.
Duplex Steel Socket Weld Flanges : S31803 F51, S32205 F60.
Super Duplex Steel Socket Weld Flanges : S32750, S32760.
Carbon Steel Socket Weld Flanges : A105, LF2, IS 2062, F42, F46, F52, F60, F65, F70.
Alloy Steel Socket Weld Flanges : F1, F5, F9, F11, F12, F22, F91.

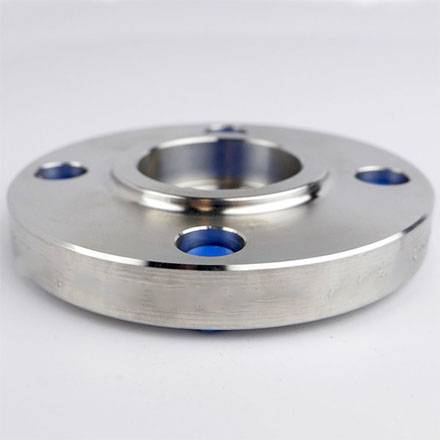

High Nickel Alloy : 200, 201, 400, K500, 600, 601, 625, 718, 800, 825, C22, C276, B2, X.
Alloy 20 Socket Weld Flanges : Alloy 20.
ss 304h socket weld flanges, ss 316 socket weld flanges supplier, monel 400 socket weld flanges, stainless steel 304 socket weld flanges price list, super duplex steel socket weld flanges, hastelloy c22 socket weld flanges, stainless steel 321 socket weld flanges, high nickel alloy socket weld flanges price list in india, ss socket weld flanges price list, ss 347 socket weld flange supplier, price of copper nickel socket weld flanges, inconel 600 socket weld flanges supplier in india, alloy steel f5 socket weld flanges, duplex steel socket weld flanges supplier in mumbai, alloy socket weld flange price, asme sa182 socket weld flanges, alloy 20 socket weld flange grade 304 price list, ss 446 socket weld flanges, swrf flanges supplier, asme socket weld flanges, stainless steel socket weld flanges manufacturers in india, cost of 310 stainless steel socket weld flanges, nickel 200 socket weld flanges manufacturer in mumbai, carbon steel socket weld flanges, austenitic steel socket weld flange.
ASME Flanges, DIN Flanges, ANSI Flanges With Mill And Third Party Test Certificate.
