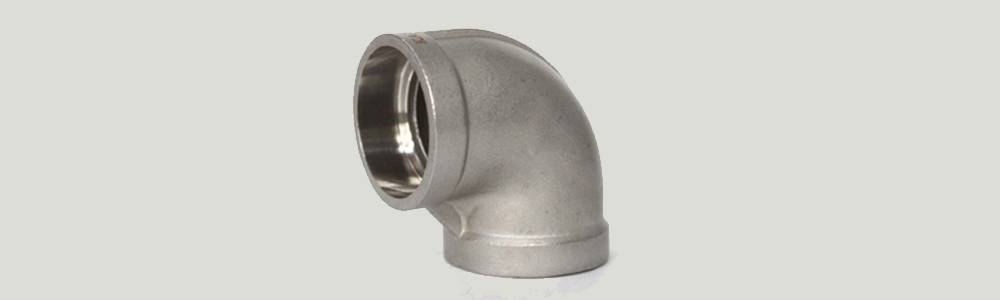

90° Elbow / ASME B16.11 Socket Weld 90° Elbow

Today among the global industrialists 90⁰ Elbow / ASME B16.11 socket weld 90⁰ elbow have made a good image because of impressive attributes. This product because of effectiveness in its quality has resulted in easily satisfying various application demands. However, in a well-equipped industry the product is manufactured by making use of good quality alloy that has made the product easy to use in various applications. The product is supplied to its buyers in wide comprehensive ranges exactly demand made by those. Also, stage-wise, thorough inspection is done to assure the high quality of production of the elbow.

Specifications-
• Dimensions- The dimensions of the product are BS 3799 and ANSI B16.11
• Size- The size of the product is ranging in ½” NB to 4” NB IN
• Classes- The classes of the product are ranging in 3000LBS, 9000LBS, and 6000LBS
• Forms- The forms in which product supplied to its buyer is threaded elbow, 45 Deg elbow, forged elbow, socket weld elbow, and 90 Deg elbow


Testing-
Just for quality assurance, several tests are conducted like-
• PMI/IGC test
• Hardness test
• Flattening/flaring test
• Macro/micro test
• Chemical/mechanical test
• Radiography test


MTC-
The industry is offering mill test certification in accordance with EN 10204/3.1B.


Documentations-
They are also offering documentation, reports on buyers demand like-
• Heat treatment chart
• Quality assurance plan
• Fumigation certification
• Radiography test report
• Raw material test report
• Material traceability report


So place your order to Piyush Steel and get it delivered now.




Dimension : ANSI B 16.11 / BS3799
Size : 1/2"NB to 4" NB IN
Class : 3000 LBS, 6000 LBS, 9000 LBS
Form : Forged Elbow, Threaded Elbow, Socket Weld Elbow , 45 Deg Elbow, 90   Deg Elbow.



Materials and Grade:

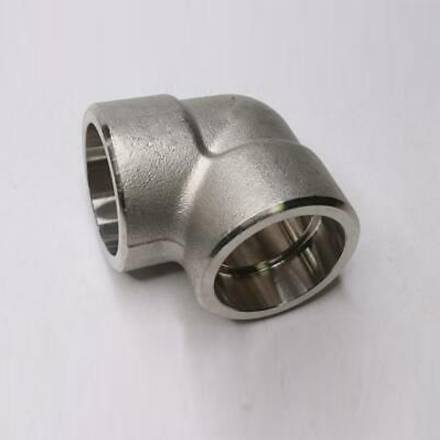

Stainless Steel Socket Weld 90° Elbow:

ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304, 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347H.

Duplex Steel Socket Weld 90° Elbow:

ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760

Carbon Steel Socket Weld 90° Elbow:

ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70

Alloy Steel Socket Weld 90° Elbow:

ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91

Nickel Alloy Socket Weld 90° Elbow:

ASTM / ASME SB 336,
Nickel Alloy 200 (UNS No. 2200), Nickel Alloy 201 (UNS No. 2201), Monel 400 (UNS No. 4400), Alloy 20 / 20 CB 3 (UNS No. 8020), Inconel 825 (UNS No. 8825), Inconel 600 (UNS No. 6600), Inconel 601 (UNS No. 6601), Inconel 625 (UNS No. 6625), Hastelloy C 276 / C22 / B2 (UNS No. 10276)

Copper Alloy Steel Socket Weld 90° Elbow:

ASTM / ASME SB 111 UNS NO.C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 , C 71500
ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)



Socket Weld Fittings ASME B16.11 90° Elbow Dimensions:

Nominal Diameter
Depth of Socket

Dimension of Socket

Wall Thickness
Center to Bottom of Socket
A
Cmin 90°Elbow
DN NPS Jmin d1 3000LB
Sch80
6000LB
Sch160
9000LB
XXS
3000LB
Sch80
6000LB
Sch160
9000LB
XXS
6 1/8 10 10.7 3.2 3.5 - 11 11 -
8 1/4 10 14.1 3.3 4.0 - 11 15 -
10 3/8 10 17.5 3.5 4.4 - 13 15 -
15 1/2 10 21.8 4.1 5.2 8.2 16 19 25
20 3/4 13 27.4 4.3 6.1 8.6 19 22 28
25 1 13 34.2 5.0 7.0 10.0 22 27 32
32 1.1/4 13 42.9 5.3 7.0 10.6 27 32 35
40 1.1/2 13 48.3 5.6 7.8 11.2 32 38 38
50 2 13 61.1 6.1 9.5 12.2 38 41 41
65 2.1/2 16 76.9(73.8) 7.7 12.5 - 41 57 -
80 3 16 89.8 8.3 13.8 - 57 64 -
100 4 19 115.5 9.4 - - 66 -
