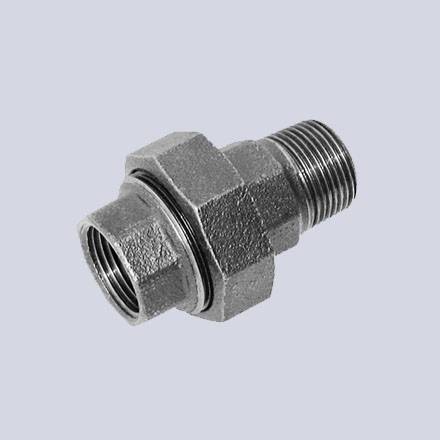

Union (Male x Female) / ASME B16.11 Threaded Union
Basically, a threaded union is a device that is used for the easy removal of applications like pumps and pipes that are not easily unthreaded. There are two types of union that is male union and female union that is used for attaching the pipes where neither pipe can easily rotate on its axis. ASME B16 11 threaded fitting union male female is the most demanding products that are used in various industries and applications. Piyush Steel is the leading company that manufactures high and superior quality of unions that are offered to customers as per their requirement and demand. At the time of manufacturing these fittings, high quality of the material is used with it both national and international specifications are added to the material.
Specifications of ASME B16 11 threaded fitting union male female-
Specifications- ASTM A182
Dimension- ANSI B16.11
Size- ¼ NB to 4 NB
Range-socket, coupling, bushing, elbow
Class- 2000LBS, 6000LBS, 9000LBS
All these specifications and standards are added to the material for manufacturing these threaded union male female.
Features of threaded fitting union male and female
- Excellent corrosion resistance
- High tensile strength
- Dimensional accuracy
When these fittings ready, they come across various tests and inspections that are done under the guidance and supervision of experts.
- Radiography test
- Flattening test
- Flaring test
- Ultrasonic test
- Macro and micro test
- Third party inspection
At last, this ASME B16 11 threaded fitting union male female are packed in wooden cases or pallets preventing them damages and rust.
|Dimension||:||ANSI B 16.11|
|Specification||:||ASTM A 182|
|Size||:||1/4" to 4"|
|Class||:||2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS|
|Range||:||Union, Tee, Elbow, Socket, Nipple, Coupling, Plug, Bushing, Weldolet, Threadolet, Sockolet.|
Materials and Grade:
Stainless Steel Threaded Fitting Union Male / Female:
ASTM / ASME SA 403 GR WP "S" / "W" / " WX"
304, 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347H.
Duplex Steel Threaded Fitting Union Male / Female:
Carbon Steel Threaded Fitting Union Male / Female:
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Alloy Steel Threaded Fitting Union Male / Female:
Nickel Alloy Threaded Fitting Union Male / Female:
Nickel Alloy 200 (UNS No. 2200), Nickel Alloy 201 (UNS No. 2201), Monel 400 (UNS No. 4400), Alloy 20 / 20 CB 3 (UNS No. 8020), Inconel 825 (UNS No. 8825), Inconel 600 (UNS No. 6600), Inconel 601 (UNS No. 6601), Inconel 625 (UNS No. 6625), Hastelloy C 276 / C22 / B2 (UNS No. 10276)
Copper Alloy Steel Threaded Fitting Union Male / Female:
ASTM / ASME SB 111 UNS NO.C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 , C 71500
ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
Threaded Fittings Union Male / Female Dimensions:
