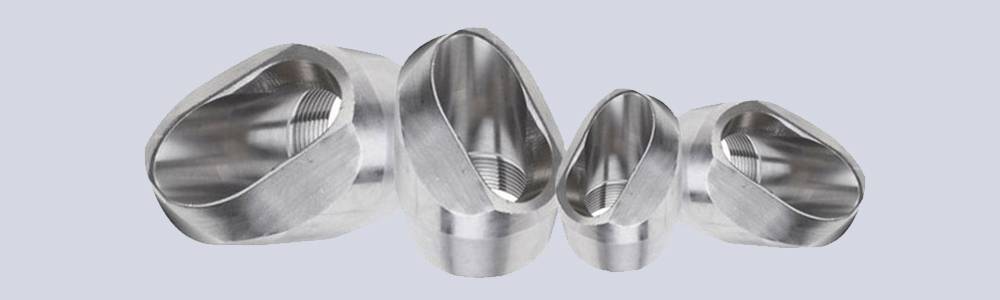

90° Elbow Outlet / ASME B16.11 Threaded 90° Elbow Outlet

ASME B16 11 threaded fitting 90 degree elbow outlet are the joints or connectors that attach various pipes details to other pipes which include different diameters. These threaded fittings, have excellent working efficiency and strength in high-temperature conditions. The product is formed with the combination of various elements that provides great resistance to corrosion and toughness. This can be withstood in severe environmental conditions. The company furnishes the product by using high quality of raw material that exhibits national and international standards.

Features –
• Highly durable
• Great working efficiency
• Consist of superior tensile strength and toughness
• Functions for a long period of time


Specifications –
• Dimensions –ASTM A 182 /ANSI 16.11
• Size – maximum size 4 or minimum size 1/4
• Class-3000 LBS, 9000 LBS, 2000 LBS
• Range – socket, nipple, Bushing, coupling
• Types – forged elbow, forged return, forged collar


These threaded fittings are manufactured with the highest tech skill machines and experience working staff that exhibits the superior quality of the product. Therefore, this is offered in many shapes and sizes as per the requirements and demands of the clients. The product is highly demanded in the market due to its great attributes and features. To assure the quality of product these threaded fittings, have gone through various testing procedures.


To get the best quality ASME B16 11 threaded fitting 90 degree elbow outlet you can consider the Piyush steel. You can get this product at quite reasonable and cost-effective rate with standard quality of the product. It will be available on any offline and online stores. So as per your suitability, you can visit it and buy from any one of these stores.



Dimension : ANSI B 16.11
Specification : ASTM A 182
Size : 1/4" to 4"
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Range : Union, Tee, Elbow, Socket, Nipple, Coupling, Plug, Bushing, Weldolet,   Threadolet, Sockolet.



Types:

Forged Cap, Forged Reducer, Forged Elbow, Forged Tee, Forged Insert , Forged Stub-Ends, Forged Return Bends, Forged Collar, Forged Cross.



Materials and Grade:

Stainless Steel Threaded Fitting 90° Elbow Outlet:

ASTM / ASME SA 403 GR WP "S" / "W" / " WX"

304, 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347H.

Duplex Steel Threaded Fitting 90° Elbow Outlet:

ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760

Carbon Steel Threaded Fitting 90° Elbow Outlet:

ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70

Alloy Steel Threaded Fitting 90° Elbow Outlet:

ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91

Nickel Alloy Threaded Fitting 90° Elbow Outlet:

ASTM / ASME SB 336,
Nickel Alloy 200 (UNS No. 2200), Nickel Alloy 201 (UNS No. 2201), Monel 400 (UNS No. 4400), Alloy 20 / 20 CB 3 (UNS No. 8020), Inconel 825 (UNS No. 8825), Inconel 600 (UNS No. 6600), Inconel 601 (UNS No. 6601), Inconel 625 (UNS No. 6625), Hastelloy C 276 / C22 / B2 (UNS No. 10276)

Copper Alloy Steel Threaded Fitting 90° Elbow Outlet:

ASTM / ASME SB 111 UNS NO.C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 , C 71500
ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)



Threaded Fittings 90° Elbow Outlet Dimensions:



General notes:

•   Dimensions are in millimeters unless otherwise indicated.

•   Dimension (B) is minimum length of perfect thread.

•   The length of useful thread (B) plus threads with fully formed roots and flat crests) shall not be less than J.
