Carbon Steel A234 Pipe Fittings - Manufacturer, Supplier

ASTM A234 WPB Carbon Steel Pipe Elbow, Carbon Steel Buttweld Fittings, Carbon Steel A234 Reducer, Carbon Steel A234 WPB Buttweld Elbow, CS A234 Pipe Fittings, Carbon Steel A234 WPB Equal Tee, Carbon Steel A234 Pipe Fittings, ANSI B16.9 Carbon Steel A234 Butt weld Fittings Supplier in Mumbai, India.

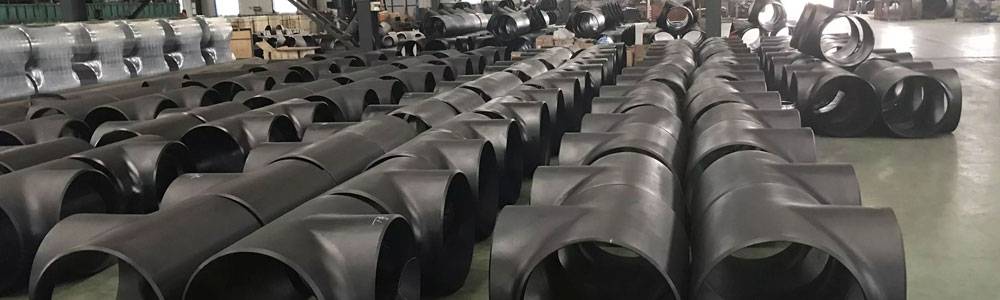

Carbon Steel A234 Pipe Fittings

A globally appreciated industry Piyush Steel is providing to the national and international clients a good collection of Carbon Steel Pipe Fittings. We as a manufacturer, stockiest and distributor are taking full care of clientele and is providing the product according to their exact demands. It is provided in different specifications, grades, dimensions, sizes, schedules, types. Additionally, it is fabricated according to the special demands of clients also to meet any type of application desires. Addition to those specifications, it is made available at different kinds. It includes CS unequal & equal cross, CS elbows, CS short & long stub ends, CS welded buttweld pipe fittings, CS seamless buttweld pipe fitting, etc.

Description of carbon steel-
Carbon steel is a metal that is having steel with the addition of carbon of 2.1%. According to AISI, the carbon steel is that steel in which no content is defined for the alloys like molybdenum, cobalt, zirconium, tungsten, titanium, niobium, and nickel for obtaining alloying effects. Also, CS is said to be as it is when the defined amount of copper don’t exceed 0.40%.
Moreover when the percentage of carbon increases steel alloy gets the ability to become stronger and harder by the process of heat treatment. Therefore it becomes less ductile. Aside from heat treatment, greater carbon content is reducing welding ability. In CS greater carbon content is lowering melting points.

Carbon steel is divided into 3 major classes that are low CS, medium CS, and high CS.
Low/mild CS- This CS is having a carbon of 0.40%-0.30%. It is covering greater diversity of shapes that is from a flat sheet to the structural beam. However, based on the needed properties, other alloys are increased. Likewise in DQ the carbon is kept lesser and aluminum is included and structural steel level of carbon is greater and manganese is raised.

Medium CS- It is having the carbon of 0.31%-0.60% addition to the manganese of .060%-1.65%. It is stronger than low CS and is harder to form, cut and weld. Medium CS is tempered and hardened through heat treatment.

High CS- It is called as carbon tool steel and carbon ranges from 0.61%-1.50%. High CS is harder to bend, cut and weld. Once it is provided heat treatment properly, it becomes very much harder and brittle.

Applications and properties-
Carbon Steel Pipe Fittings are used in various industries like oil refineries, fluid transportation, chemical plants etc due to many excellent properties. The product exhibits high hardness, anti-corrosiveness, Long-serviceability, resistance to general corrosion etc.

Carbon Steel A234 WPB Pipe Cap Stockist, Carbon Steel LR Elbow, Carbon Steel A234 Stub End, A234 WPB Carbon Steel Butt weld Fittings, ASME SA 234 Carbon Steel WPB Pipe Bend, Carbon Steel Cross Exporter in India.

Carbon Steel WPB SR Elbow, Carbon Steel A234 Welded Pipe Fittings, ASTM A234 Carbon Steel Industrial Pipe Fittings Distributors, Carbon Steel Pipe Fittings at Best Price, Carbon Steel A234 WPB Seamless Butt weld Fittings Manufacturer in India.

Carbon Steel Butt weld Fittings
Carbon Steel Pipe Fittings Price List

Request the latest Carbon Steel Buttweld Fittings Price List. Please Call +91 22 23867540 or Send an Email to info@piyush-steel.com for Carbon Steel Pipe Fittings Ready stock information and updated price list.

Carbon Steel Butt weld Fittings Forms in Stock

Carbon Steel Tee

Carbon Steel Cross

Carbon Steel Eccentric Reducer
  • Carbon Steel Eccentric Reducer
  • Carbon Steel A234 Eccentric Reducer
  • Carbon Steel A234 WPB Eccentric Reducer
  • CS A234 WPB Eccentric Reducer
  • A234 WPB Eccentric Reducer
  • ANSI B16.9 Carbon Steel A234 WPB Eccentric Reducer

Carbon Steel Concentric Reducer
  • Carbon Steel Concentric Reducer
  • Carbon Steel A234 Concentric Reducer
  • Carbon Steel A234 WPB Concentric Reducer
  • CS A234 WPB Concentric Reducer
  • ANSI B16.9 Carbon Steel WPB Concentric Reducer

Carbon Steel Pipe Cap

Carbon Steel Long Stub End

Carbon Steel Short Stub End

Carbon Steel Pipe Bend

Stock Size Range and Specifications For Carbon Steel WPB Pipe Fittings

Specification : ASTM A234 / ASME SA234

Dimension Standard : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)

Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS

Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Type : Seamless / Welded / Fabricated

Chemical Composition of Carbon Steel WPB Buttweld Fittings
Grade C Mn Si S P Cr Mo
A234 WPB 0.3 0.60-1.35 0.15-0.30 0.04 0.035 0.3 0.12

Mechanical Properties of Carbon Steel A234 WPB Pipe Fittings
Grade Tensile Strength (Mpa) Yield Strength (Mpa)
A234 WPB 60-85[415-585] 35[240]

Markings On The Carbon Steel A234 Butt weld Pipe Fittings

The full identification of the pipe fittings should be continuously marked down its whole length, including :

  •   Rating Designation
  •   Material Designation
  •   "WP" in grade symbol
  •   Grade
  •   Schedule number or nominal wall thickness
  •   Heat Code
  •   Manufacturer’s Name or Symbol

ASTM A234 Carbon Steel Pipe Fittings Application Industries
  •   Petrochemical Industry
  •   Chemical Industry
  •   Oil and Gas Industry
  •   Pulp & Paper Indusry
  •   Power Plant Industry
  •   Food Processing Industry
  •   Pharmaceuticals Industry
  •   Energy Industry
  •   Aerospace Industry
