Piyush steel has grown significantly as a manufacturer, exporter, and supplier of ASTM B407 Incoloy 800H Tubes. We are specialized in producing large diameter tubes in accordance with national and international standards of quality. We are an ISO certified company and with our strong strategy, we have adhered to the quality. Our company caters to the niche of almost all up-and-coming sectors such as refineries, petrochemical and oil and gas industries. We have been a reputed and popular company having an excellent track record for the client's satisfaction. We have never compromised on quality and service provided to customers, thus we have achieved ISO certifications and accreditations. We believe in keeping customers happy and satisfied by providing them never compromised standards of quality. We have an excellent staff, which has excellent experience in their respective field. Also, we have the latest tech and equipment also considering industrial standards, our all range of products achieved high end quality and surface finish.
Table Of Content

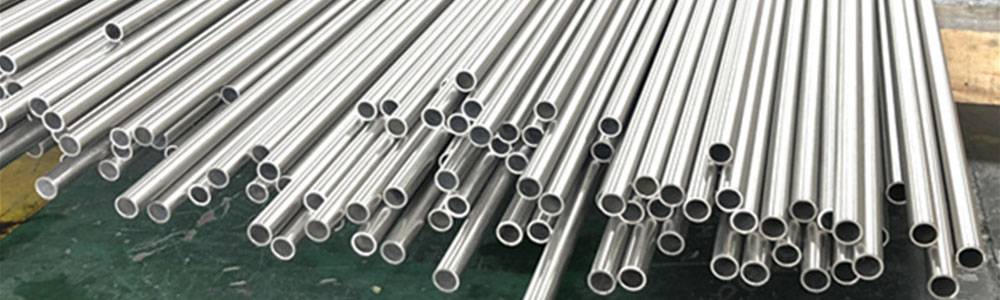

ASTM B407 Incoloy 800H Tubes details-
Incoloy tubes are solid solution iron, chromium and nickel alloy tubes. Typically, these are offered as one, dual certified alloying meeting the elemental requirements of alloy. This material is restricted titanium and aluminium grade. This results in higher creep and stress to rupture properties. These tubes have superior resistance to creep and stress rupture. Typically, these tubes are used for applications that include long term service in the higher temperatures where resistance is required from carburization and oxidation and other types of higher temperature corrosion. Power generation, hydrocarbon processing, and heat furnaces are some of the common applications of ASTM B407 Incoloy 800H Tubes. Due to the presence of alloying elements structure of tubes get resistance from sulfidation. The presence of nickel content increases the resistance to nitriding. The hot working operations of tubes are performed in the temperature between 1600 deg F and 2200 deg F. also, no forming operation should be performed in the temperature below 1600 deg F. the preheating of tools is required to avoid the chill. The hot working operation performed in fast as possible avoiding higher temperatures between 1000 deg F to 1400 deg F. however, the cold working operation is performed in the annealed condition.
We are committed to never compromise with the quality of the manufactured range of products. Thus, to do so we follow and apply strict quality control measures. The quality measures were developed by professionals who serve our clients for a long time. Our strong focus is to manage and implement quality standards in each level of productions. This assures the reliability of products even after manufacturing. With the testing procedures, damaged products can be identified and removed. Also, a damaged lot will be replaced if the fault is major. Mainly, two types of testing are performed by us are destructive testing and non-destructive testing.
• Tensile test
• Hardness test
• Mechanical test
• Compression test
• Leakage test
• Pressure test
• Thermal stability analysis
• Pitting corrosion test
• IGC test
• Positive material test
• Macro test
• Micro test
• Chemical analysis
• Ultrasonic test
We certify our quality standards by providing documentation and certificates to our customers. Those include fumigation certificates, quality assurance plan, mill test report, specification guide, product invoice, (NBAL) test report, attested certificates, raw material test report, etc. The delivery of ASTM B407 Incoloy 800H Tubes is done in the standard packing of wooden cases, wooden pallets, plywood pallets, and cartons. Moreover, the extra protection of end caps is also provided on tubes to prevent damages while exporting. Also, the plastic shield provides protection from contamination while exporting.
|Incoloy 800H||1.4958 / 1.4876||N08810||NCF 800H||NA 15(H)||ЭИ670||Z8NC33-21||X5NiCrAlTi31-20||XH32T|
Tube Specification : ASTM B407, B515 / ASME SB407, SB515
Dimensions : ASTM, ASME and API
Tubes Size : 6 mm OD x 0.7 mm to 50.8 mm OD x 3 mm thk.
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Capillary Tubes
Form : Round Tube, Square Tube, Rectangular Tube
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
End Protection : Plastic Caps
Finish : Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
External Coating : 3LPE / 3LPP/ FBE/ DFBE/ PP
Inspection, Test Reports : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports
Packing : Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests
Specials : Sizes and Specifications other than above can be manufactured on request
|800H||0.05 – 0.10||1.50 max||1.00 max||0.015 max||0.75 max||39.50 min||30.00 – 35.00||19.00 – 23.00||0.15 – 0.60||0.15 – 0.60|
|Element||Density||Melting Point||Tensile Strength||Yield Strength (0.2%Offset)||Elongation|
|800H||7.94 g/cm3||1385 °C (2525 °F)||Psi – 75,000 , MPa – 520||Psi – 30,000 , MPa – 205||30 %|
The full identification of the tube should be continuously marked down its whole length, including :
